Schneider Electric

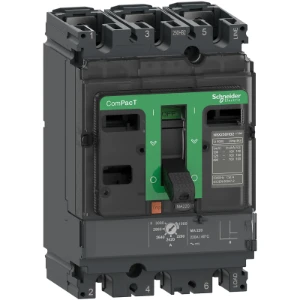

C25F3MA220
Motor protection circuit-breaker
Manufacturer part number: C25F3MA220
Serie: ComPacT NSX, new generation
EAN-code: 3606481997708
SKU Omnical: 4102703
Stock: 0.
Estimated lead time: 11 days *
PreOrder
S72
$
1,406.08
per item
$
1,025.03
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
C25F3MA220 Schneider Electric Motor protection circuit-breaker
Schneider Electric Motor protection circuit-breaker ComPacT - Vermogenschakelaar - NSX250F - 36kA - AC - 3P3D - 220A - MA
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Adjustment range undelayed short-circuit release
(A)
1980 - 3080
Phase failure sensitive
No
Switch off technique
Magnetic
Rated operating voltage
(V)
690 - 690
Width
(mm)
105
Rated permanent current Iu
(A)
220
Type of electrical connection of main circuit
Screw connection
Device construction
Built-in device fixed built-in technique
With integrated auxiliary switch
No
With integrated under voltage release
No
Number of poles
3
Rated short-circuit breaking capacity lcu at 400 V, AC
(kA)
36
Degree of protection (IP)
IP40
Height
(mm)
161
Depth
(mm)
86
Type of control element
Other
With thermal protection
No
Stock and logistics
Height
14.2 cm
Width
11.4 cm
Depth
19.4 cm
Packaging
box
Weight
1.956 kg
HS code
8536209090
