Schneider Electric

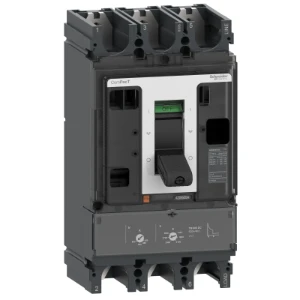

C40F3TM400D
Power circuit-breaker for trafo/generator/installation protection
Manufacturer part number: C40F3TM400D
Serie: ComPacT NSX, new generation
EAN-code: 3606481995018
SKU Omnical: 4102928
Stock: 0.
Estimated lead time: 15 days *
PreOrder
S72
$
2,728.76
per item
$
1,989.26
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
C40F3TM400D Schneider Electric Power circuit-breaker for trafo/generator/installation protection
Schneider Electric Power circuit-breaker for trafo/generator/installation protection ComPacT - Vermogenschakelaar - NSX400F - 36kA - DC - 3P - 400A - TMD
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated permanent current Iu
(A)
400
Overload release current setting
(A)
280 - 400
Adjustment range short-term delayed short-circuit release
(A)
1000 - 2000
Adjustment range undelayed short-circuit release
(A)
1000 - 2000
Integrated earth fault protection
No
Type of electrical connection of main circuit
Screw connection
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
Yes
Number of poles
3
Position of connection for main current circuit
Front side
Type of control element
Toggle
Motor drive optional
Yes
Motor drive integrated
No
Degree of protection (IP)
IP3X
Rated voltage
(V)
750 - 750
DIN rail (top hat rail) mounting optional
No
Complete device with protection unit
Yes
With integrated under voltage release
No
Stock and logistics
Height
14.7 cm
Width
20 cm
Depth
29.1 cm
Packaging
box
Weight
5.518 kg
HS code
8536209090
