Schneider Electric
C6336E630

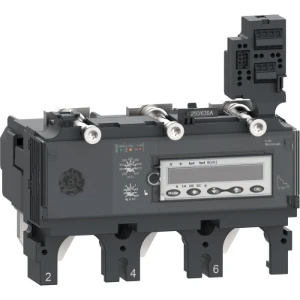

Trip block for power circuit-breaker
Manufacturer part number: C6336E630
Serie: ComPacT NSX, new generation
EAN-code: 3606482003071
SKU Omnical: 4103010
Stock: 0.
Estimated lead time: 11 days *
PreOrder
S72
$
2,716.18
per item
$
1,980.09
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
C6336E630 Schneider Electric Trip block for power circuit-breaker
Schneider Electric Trip block for power circuit-breaker ComPacT - Trip unit - NSX630 - AC - 3P3D - 630A - 6.3E
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Overload release current setting
(A)
250 - 630
Initial value of the undelayed short-circuit release - setting range
(A)
945
End value adjustment range undelayed short-circuit release
(A)
6930
Rated permanent current Iu
(A)
630
Number of poles
3
Short-circuit release function
Delayed
Voltage type for actuating
AC
Rated control supply voltage at AC 50 Hz
(V)
690 - 690
Rated control supply voltage at AC 60 Hz
(V)
690 - 690
With ground fault protection function
Yes
Type of motor protection
Electronic release
Stock and logistics
Height
13.5 cm
Width
17.5 cm
Depth
21.5 cm
Packaging
box
Weight
1.48 kg
HS code
8536309000
