Schneider Electric
C63F42D630

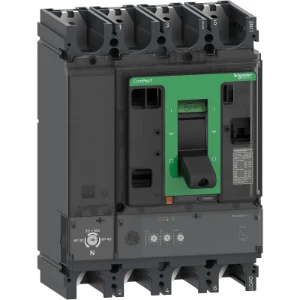

Power circuit-breaker for trafo/generator/installation protection
Manufacturer part number: C63F42D630
Serie: ComPacT NSX, new generation
EAN-code: 3606482002661
SKU Omnical: 4103032
Stock: 0.
Estimated lead time: 6 days *
PreOrder
S72
€
3.607,00
per item
€
2.629,50
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
C63F42D630 Schneider Electric Power circuit-breaker for trafo/generator/installation protection
Schneider Electric Power circuit-breaker for trafo/generator/installation protection ComPacT - Vermogenschakelaar - NSX630F - 36kA - AC - 4P4D - 630A - 2.3
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated permanent current Iu
(A)
630
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
(kA)
36
Overload release current setting
(A)
250 - 630
Adjustment range short-term delayed short-circuit release
(A)
375 - 6300
Adjustment range undelayed short-circuit release
(A)
6900 - 6900
Integrated earth fault protection
No
Type of electrical connection of main circuit
Screw connection
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
Yes
Number of poles
4
Position of connection for main current circuit
Front side
Type of control element
Toggle
Motor drive optional
Yes
Motor drive integrated
No
Degree of protection (IP)
IP40
Rated voltage
(V)
690 - 690
DIN rail (top hat rail) mounting optional
No
Complete device with protection unit
Yes
With integrated under voltage release
No
Stock and logistics
Height
15 cm
Width
20 cm
Depth
29 cm
Packaging
box
Weight
7.494 kg
HS code
8536209090
