Schneider Electric
CCT15285
Twilight switch for distribution board
Manufacturer part number: CCT15285
Serie: IC
EAN-code: 3606489524609
SKU Omnical: 1630875
Stock: 0.
Estimated lead time: 6 days *
PreOrder
B75
$
151.67
per item
$
133.32
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

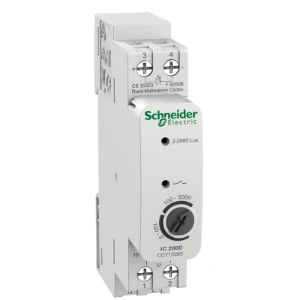

CCT15285 Schneider Electric Twilight switch for distribution board
Schneider Electric Twilight switch for distribution board Acti 9 IC2000 indoor (2 - 2000 lux) twilight switch
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated voltage
(V)
230
Rated frequency
(Hz)
50 - 60
Max. incandescent lamp load
(W)
2600
Max. load fluorescent lamp
(VA)
2300
Max. load fluorescent lamp (Duo circuit)
(VA)
2300
Max. load fluorescent lamp (parallel compensated)
(VA)
730
Max. switching current (cos phi = 0.6)
(A)
10
Rated switch current
(A)
16
Adjustment range brightness value
(lx)
2 - 2000
With programmable overnight shutoff
No
Push button input
No
Max. conductor length light sensor
(m)
50
Protection class light sensor
II
Mounting method light sensor
Built-in
Mounting method
DIN rail
Width in number of modular spacings
1
Built-in depth
(mm)
67
Degree of protection (IP)
IP20
Degree of protection (IP) light sensor
IP66
Stock and logistics
Height
4.7 cm
Width
7.7 cm
Depth
10.5 cm
Packaging
box
Weight
0.124 kg
HS code
8536508000
