Schneider Electric
HMIDT35XFH
Graphic panel
Manufacturer part number: HMIDT35XFH
Serie: Harmony GTUX
EAN-code: 3606481572929
SKU Omnical: 4009336
Stock: 0.
Estimated lead time: 37 days *
PreOrder
S79
€
877,80
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

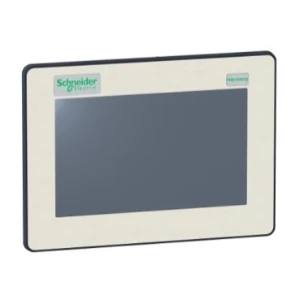

HMIDT35XFH Schneider Electric Graphic panel
Schneider Electric Graphic panel 7W EXTREME DISPLAY FULL COATED
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Supply voltage DC
(V)
12 - 24
Voltage type of supply voltage
DC
Number of HW-interfaces industrial Ethernet
0
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
0
With SW interfaces
No
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
Type of display
LCD
With colour display
Yes
Number of colours of the display
262144
Number of grey-scales/blue-scales of display
0
Screen diagonal
(inch)
7
Number of pixels, horizontal
800
Number of pixels, vertical
480
Useful project memory/user memory
(kByte)
0
With numeric keyboard
No
With alpha numeric keyboard
No
Number of function buttons, programmable
0
With message indication
No
With message system (incl. buffer and confirmation)
No
Process value representation (output) possible
No
Process default value (input) possible
No
With recipes
No
Number of password levels
0
With printer output
No
Number of online languages
0
Additional software components, loadable
No
Degree of protection (IP), front side
IP66
Operating temperature
(°C)
-30 - 65
Rail mounting possible
No
Wall mounting/direct mounting
No
Suitable for safety functions
No
Width of the front
(mm)
203.6
Height of the front
(mm)
148.6
Built-in depth
(mm)
37
Number of buttons with LED
0
Number of system buttons
0
Touch technology
Resistive touch
Degree of protection (NEMA), front side
Other
Stock and logistics
Height
14.1 cm
Width
26.5 cm
Depth
21.5 cm
Packaging
box
Weight
1.626 kg
HS code
8528590090
