Schneider Electric
IMT47224
Downlight/spot/floodlight
Manufacturer part number: IMT47224
Serie: Mureva Breedstralers
EAN-code: 3606489903244
SKU Omnical: 3074763
Stock: 0.
Estimated lead time: 87 days *
PreOrder
B78
€
487,60
per item
€
355,46
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

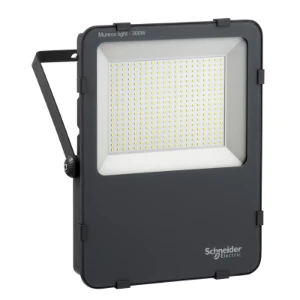

IMT47224 Schneider Electric Downlight/spot/floodlight
Schneider Electric Downlight/spot/floodlight Mureva Breedstraler - 300W - IP65 230V
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED not exchangeable
Suitable for number of lamps
1
Lamp holder
None
Type of control gear
Not required
With control gear
No
Width
(mm)
439
Nominal voltage
(V)
220 - 240
Material housing
Aluminium
Colour housing
Grey
Reflector
None
Light sharing
Symmetric/asymmetric
Length
(mm)
71
Height/depth
(mm)
339
Protection class
I
Degree of protection (IP)
IP65
Impact strength
IK06
Luminaire with limited surface temperature, sign "D“
No
With movement sensor
No
With light source
No
Suitable for wall mounting
Yes
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
Yes
Suitable for pedestal/floor mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Adjustability
Rotatable
With light sensor
No
Suitable for lamp power
(W)
300 - 300
Max. system power
(W)
330
Colour temperature
(K)
6500 - 6500
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
36000
Colour of light
White
Colour rendering index CRI
80-89
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Suitable for low voltage cable system
No
Surface protection
Powder coating
Material cover
Plastic matt/satinized
Surface brushed
No
LED nominal current at constant current
(mA)
100 - 100
Dimming depending on control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
Yes
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Light distributor
Reflector
Light outlet
Direct
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Energy efficiency class of the provided exchangeable built-in lamp
A+
Rated life time L70/B10 at 25 °C
(h)
50000
Rated life time L70/B50 at 25 °C
(h)
50000
Rated life time L80/B10 at 25 °C
(h)
50000
Rated life time L80/B50 at 25 °C
(h)
50000
Rated life time L90/B10 at 25 °C
(h)
50000
Rated life time L90/B50 at 25 °C
(h)
50000
Degree of protection (NEMA)
Other
Rated ambient temperature according to IEC62722-2-1
(°C)
-30 - 45
Luminous flux
(lm)
36000 - 36000
Luminous intensity
(cd)
11965.584
Power factor
0.9
Type of wiring
Ending
Number of poles
3
Conductor cross section
(mm²)
1
Connectable conductor cross section
(mm²)
1 - 1
Connection type
Other
Emergency power supply integrated
No
Luminaire efficacy
(lm/W)
120
Suitable for workplace according to EN 12464-1
No
Covering of the luminaire with thermally insulating material possible
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Photobiological safety according to EN 62471
Other
Colour consistency (McAdam ellipse)
Other
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Dimming DALI-2
No
Exchangeable control gear
No
Constant light output (CLO)
No
Suitable for wall mounting
No
Stock and logistics
Height
30 cm
Width
40 cm
Depth
60 cm
Packaging
box
Weight
7.972 kg
HS code
9405423100
