Schneider Electric
LE1M35M710
Motor starter/Motor starter combination
Manufacturer part number: LE1M35M710
Serie: TeSys LE
EAN-code: 3389110765649
SKU Omnical: 2339357
Stock: 0.
Estimated lead time: 13 days *
PreOrder
S78
$
122.57
per item
$
83.22
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

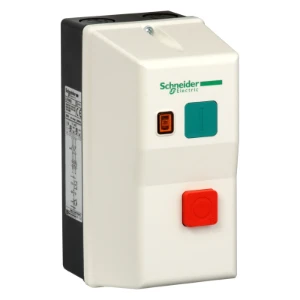

LE1M35M710 Schneider Electric Motor starter/Motor starter combination
Schneider Electric Motor starter/Motor starter combination TeSys LE - Directstarter in behuizing - Ith=2,6-3,7A - Spoel:220V AC 5
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated control supply voltage at AC 50 Hz
(V)
220 - 220
Rated control supply voltage at AC 60 Hz
(V)
220 - 220
Voltage type for actuating
AC
Rated operation power at AC-3, 400 V
(kW)
1.5
Width
(mm)
78
Rated operation current Ie
(A)
3.7
Overload release current setting
(A)
2.6 - 3.7
With short-circuit release
No
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP)
IP65
Height
(mm)
160
Depth
(mm)
108
Type of motor starter
Direct online starter (DOL)
Rated operation power at AC-3, 230 V, 3-phase
(kW)
0.55
Rated power, 460 V, 60 Hz, 3-phase
(kW)
1.1
Rated power, 575 V, 60 Hz, 3-phase
(kW)
1.5
Rated operation current at AC-3, 400 V
(A)
3.7
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Ambient temperature, upper operating limit
(°C)
40
Temperature compensated overload protection
Yes
Release class
CLASS 10 A
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Rail mounting possible
No
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
With transformer
No
Number of command positions
1
Suitable for emergency stop
No
Number of indicator lights
0
External reset possible
No
With fuse
No
Stock and logistics
Height
11.6 cm
Width
16.7 cm
Depth
8 cm
Packaging
box
Weight
0.574 kg
HS code
8537109899
Country of Origin
CZ
