Schneider Electric
LJ8K06Q708
Motor starter/Motor starter combination
Manufacturer part number: LJ8K06Q708
Serie: TeSys
EAN-code: 3389110885705
SKU Omnical: 2339587
Stock: 0.
Estimated lead time: 15 days *
PreOrder
S78
$
370.94
per item
$
251.87
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

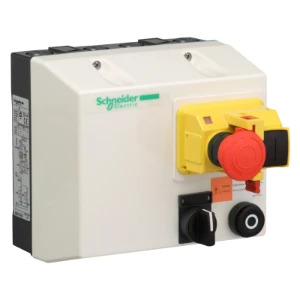

LJ8K06Q708 Schneider Electric Motor starter/Motor starter combination
Schneider Electric Motor starter/Motor starter combination TeSys LJ - Omkeerstarter in behuizing - 2,5-4A - Stuurspanning: 24V AC
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated control supply voltage at AC 50 Hz
(V)
24 - 24
Rated control supply voltage at AC 60 Hz
(V)
24 - 24
Voltage type for actuating
AC
Rated operation power at AC-3, 400 V
(kW)
1.5
Width
(mm)
175
Rated operation current Ie
(A)
4
Overload release current setting
(A)
2.5 - 4
With short-circuit release
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP)
IP55
Height
(mm)
165
Depth
(mm)
177
Type of motor starter
Reversing starter
Rated operation current at AC-3, 400 V
(A)
4
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Ambient temperature, upper operating limit
(°C)
40
Temperature compensated overload protection
Yes
Release class
CLASS 10
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Rail mounting possible
No
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
With transformer
Yes
Number of command positions
5
Suitable for emergency stop
Yes
Coordination class according to IEC 60947-4-3
Class 1
Number of indicator lights
0
External reset possible
No
With fuse
No
Stock and logistics
Height
18 cm
Width
22.5 cm
Depth
26 cm
Packaging
box
Weight
2.55 kg
HS code
8537109899
