Schneider Electric
LV434063
Fieldbus, decentr. periphery - analogue/digital I/O module
Manufacturer part number: LV434063
Serie:
EAN-code: 3606480631146
SKU Omnical: 4190057
Stock: 0.
Estimated lead time: 6 days *
PreOrder
S72
€
537,70
per item
€
391,98
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

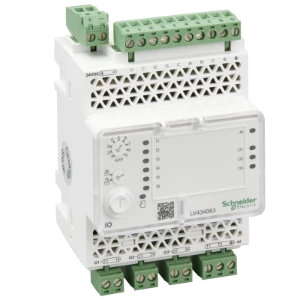

LV434063 Schneider Electric Fieldbus, decentr. periphery - analogue/digital I/O module
Schneider Electric Fieldbus, decentr. periphery - analogue/digital I/O module ComPacT - Module I/O
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Analogue inputs configurable
Yes
Analogue outputs configurable
No
Digital inputs configurable
Yes
Digital outputs configurable
Yes
Width
(mm)
71.7
Supply voltage DC
(V)
19.2 - 26.4
Voltage type of supply voltage
DC
Input current at signal 1
(mA)
6.1
Permitted voltage at input
(V)
19.8 - 25.2
Type of voltage (input voltage)
DC
Type of digital output
Other
Output current at digital output
(A)
5
Output voltage at digital output
(V)
250 - 250
Type of output voltage
AC
Short-circuit protection, digital outputs available
Yes
Analogue input, current
No
Analogue input, voltage
No
Analogue input, resistor
No
Analogue input, resistor temperature
Yes
Analogue input, thermocouple
Yes
Analogue input signal configurable
Yes
Analogue output, current
No
Analogue output, voltage
No
Analogue output signal configurable
No
Number of HW-interfaces industrial Ethernet
0
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
2
With optical interface
No
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
Yes
System accessory
No
Degree of protection (IP)
IP2X
Type of electric connection
Screw connection
Time delay at signal exchange
(ms)
0 - 20
Fieldbus connection over separate bus coupler possible
No
Rail mounting possible
Yes
Wall mounting/direct mounting
No
Front built-in possible
No
Rack-assembly possible
No
Suitable for safety functions
No
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Height
(mm)
116
Depth
(mm)
70.6
Number of analogue inputs
1
Number of analogue outputs
0
Number of digital inputs
6
Number of digital outputs
3
SIL according to IEC 61508
None
Number of HW-interfaces USB
0
Stock and logistics
Height
9 cm
Width
8.8 cm
Depth
12.5 cm
Packaging
box
Weight
271 g
HS code
8538909999
