Schneider Electric
LVS04040
Rail terminal bar
Manufacturer part number: LVS04040
Serie: Linergy-verdeelblokken
EAN-code: 3606482164567
SKU Omnical: 4103720
Stock: 0.
Estimated lead time: 6 days *
PreOrder
S70
$
98.71
per item
$
67.02
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

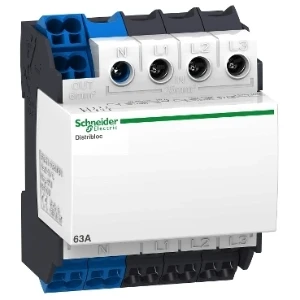

LVS04040 Schneider Electric Rail terminal bar
Schneider Electric Rail terminal bar Linergy DX - Distributie blok - 4P - 63A - 4 Modules - 24 gaten - Verb
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
4
Connection type
Screw-/spring clamp connection
Width
(mm)
72
Nominal current
(A)
63
Mounting method
DIN rail
Height
(mm)
96.5
Depth
(mm)
62
Contact safe
Yes
Number of inputs
4
Number of outputs
12
Suitable for solid conductors
Yes
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for fine strand conductors without cable end sleeve
Yes
Suitable for extra fine-strand conductors
Yes
Suitable for extra fine-strand conductors without cable end sleeve
Yes
Conductor cross section, input
(mm²)
16 - 25
Conductor cross section, output
(mm²)
2.5 - 6
Stock and logistics
Height
7.5 cm
Width
7.5 cm
Depth
10.5 cm
Packaging
box
Weight
328 g
HS code
8536901000
