Schneider Electric
LZ1H6X53BD
Motor starter/Motor starter combination
Manufacturer part number: LZ1H6X53BD
Serie: TeSys H
EAN-code: 3606485421148
SKU Omnical: 2470297
Stock: 0.
Estimated lead time: 10 days *
PreOrder
ZOY
€
208,40
per item
€
145,88
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

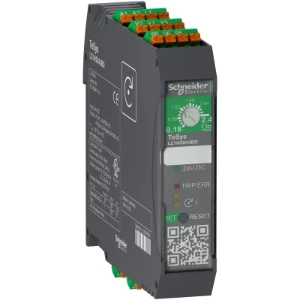

LZ1H6X53BD Schneider Electric Motor starter/Motor starter combination
Schneider Electric Motor starter/Motor starter combination TeSys H - Compacte directstarter - 1,5-6,5A - Stuurspanning: 24V DC -
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated control supply voltage at DC
(V)
24 - 24
Voltage type for actuating
DC
Rated operation power at AC-3, 400 V
(kW)
3
Width
(mm)
22.6
Rated operation current Ie
(A)
9
Overload release current setting
(A)
1.5 - 6.5
With short-circuit release
No
Type of electrical connection of main circuit
Spring clamp connection
Degree of protection (IP)
IP20
Height
(mm)
107.5
Depth
(mm)
113.4
Type of motor starter
Direct online starter (DOL)
Rated operation power at AC-3, 230 V, 3-phase
(kW)
1.5
Rated power, 460 V, 60 Hz, 3-phase
(kW)
3
Rated operation current at AC-3, 400 V
(A)
9
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Ambient temperature, upper operating limit
(°C)
70
Temperature compensated overload protection
Yes
Release class
CLASS 10
Type of electrical connection for auxiliary- and control current circuit
Spring clamp connection
Rail mounting possible
Yes
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
With transformer
No
Number of command positions
0
Suitable for emergency stop
No
Number of indicator lights
3
External reset possible
Yes
With fuse
No
Stock and logistics
Height
3.6 cm
Width
11.7 cm
Depth
12 cm
Packaging
box
Weight
0.241 kg
HS code
8537109899
