Schneider Electric
M9F42102
Miniature circuit breaker (MCB)
Manufacturer part number: M9F42102
Serie: Multi9 OEM
EAN-code: 3606481169662
SKU Omnical: 2548170
Stock: 0.
Estimated lead time: 6 days *
PreOrder
YLM
$
49.71
per item
$
36.93
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

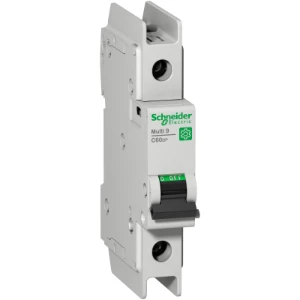

M9F42102 Schneider Electric Miniature circuit breaker (MCB)
Schneider Electric Miniature circuit breaker (MCB) Multi9 C60BP - Installatieautomaat - 1P - 2 A - C-Karakteristiek - 277
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated current
(A)
2
Number of poles (total)
1
Concurrently switching neutral conductor
Yes
Release characteristic
C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
(kA)
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
(kA)
3
Rated voltage
(V)
277
Additional equipment possible
Yes
Voltage type
AC/DC
Over voltage category
4
Pollution degree
3
Width in number of modular spacings
2
Built-in depth
(mm)
48
Degree of protection (IP)
IP20
Number of protected poles
1
Frequency
(Hz)
50 - 60
Suitable for flush-mounted installation
No
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
6
Ambient temperature during operating
(°C)
-30 - 70
Connectable conductor cross section multi-wired
(mm²)
1 - 16
Connectable conductor cross section solid-core
(mm²)
1 - 25
Explosion-proof
No
Flush-mounted installation
No
Stock and logistics
Height
7.5 cm
Width
1.8 cm
Depth
10.3 cm
Packaging
box
Weight
0.123 kg
HS code
8536201090
