Schneider Electric
M9F42315
Miniature circuit breaker (MCB)
Manufacturer part number: M9F42315
Serie: Multi9 OEM
EAN-code: 3606481169945
SKU Omnical: 1222445
Stock:
55 items.
Delivery time: 1-2 business days.
InStock
YLM
€
149,60
per item
€
111,15
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

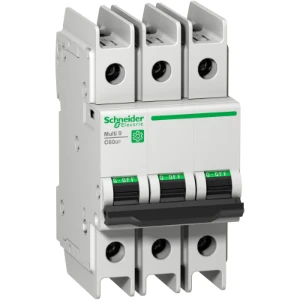

M9F42315 Schneider Electric Miniature circuit breaker (MCB)
Schneider Electric Miniature circuit breaker (MCB) Multi9 C60BP - Installatieautomaat - 3P - 15 A - C-Karakteristiek - 48
Datasheet
Rated current
(A)
15
Number of poles (total)
3
Concurrently switching neutral conductor
Yes
Release characteristic
C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
(kA)
20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
(kA)
10
Rated voltage
(V)
277
Additional equipment possible
Yes
Voltage type
AC
Over voltage category
4
Pollution degree
3
Width in number of modular spacings
6
Built-in depth
(mm)
48
Degree of protection (IP)
IP20
Number of protected poles
3
Frequency
(Hz)
50 - 60
Suitable for flush-mounted installation
No
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
6
Ambient temperature during operating
(°C)
-30 - 70
Connectable conductor cross section multi-wired
(mm²)
1 - 16
Connectable conductor cross section solid-core
(mm²)
1 - 25
Explosion-proof
No
Flush-mounted installation
No
Stock and logistics
Height
5.4 cm
Width
7.5 cm
Depth
10.3 cm
Packaging
box
Weight
0.365 kg
HS code
8536201090
