Schneider Electric
MB1502
Electrically controlled three-way control valve
Manufacturer part number: MB1502
Serie: Satchwell
EAN-code: 3606480936241
SKU Omnical: 3077141
Stock: 0.
Estimated lead time: 6 days *
PreOrder
XHW
$
229.20
per item
$
186.57
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

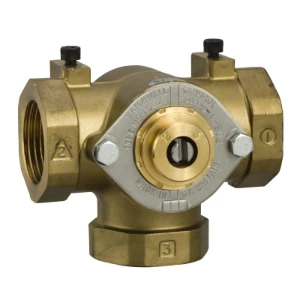

MB1502 Schneider Electric Electrically controlled three-way control valve
Schneider Electric Electrically controlled three-way control valve PTPRD_ODA_PHOTO_Integration
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Housing material
Brass
Material quality
Other
Nominal diameter
1 inch (25)
Outer pipe diameter all connections
(mm)
25
Connections
Other
Width
(mm)
95
Article compression class
PN 10
Flange compression class
PN 10
Max. medium temperature (continuous)
(°C)
120
Min. medium temperature (continuous)
(°C)
2
Surface protection
Untreated
Kvs value
8.3
Leakage loss of KVS value
(%)
0.5
Characteristic curve
Equal percentage
Installation method, distributive
No
Zero-pressure return flow
None
Auxiliary contacts
No
With end contacts
No
Suitable for manual operation
No
Explosion-proof
No
Height
(mm)
84
Depth
(mm)
120
Ambient temperature
(°C)
2 - 120
Stock and logistics
Height
12 cm
Width
9.6 cm
Depth
8.4 cm
Packaging
box
Weight
0.959 kg
HS code
8481809990
