Schneider Electric
METSEION93040

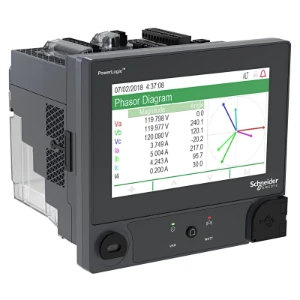

Power quality recorder
Manufacturer part number: METSEION93040
Serie: PowerLogic ION9000
EAN-code: 3606481930194
SKU Omnical: 4104557
Stock: 0.
Estimated lead time: 27 days *
PreOrder
ZFM
€
6.802,04
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
METSEION93040 Schneider Electric Power quality recorder
Schneider Electric Power quality recorder PowerLogic™ ION9000 meter, DIN-montage, ingangsstroom laagspanning, 19
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Accuracy class active energy according to IEC 62053-22
0.1S
Accuracy class reactive energy according to IEC 62053-23
0.5s
Sampling frequency
(Hz)
102400
Accuracy class according to IEC 61000-4-30
A
Measurement of harmonics in frequency range 2 kHz - 9 kHz
Yes
Width
(mm)
160
Measurement of harmonics in frequency range 9 kHz - 150 kHz
No
Flicker according to IEC 61000-4-15
Yes
With transient detection
Yes
Sampling frequency for transient detection
(MHz)
50
Data evaluation according to EN 50160
Yes
Display
LCD
Remote display
Yes
Display resolution (horizontal)
(px)
800
Display resolution (vertical)
(px)
480
Data transfer via PQDif
No
Fault record transmission via COMTRADE
Yes
Nominal voltage (Un) L-L
(V)
57 - 400
Nominal voltage (Un) N-L
(V)
100 - 690
Number of voltage measurement inputs
5
Number of current measurement inputs
10
Voltage type of supply voltage
AC/DC
Supply voltage AC 50 Hz
(V)
90 - 480
Supply voltage AC 60 Hz
(V)
90 - 480
Supply voltage DC
(V)
110 - 480
Measuring range for frequency
(Hz)
42 - 69
Number of analogue inputs
0
Number of analogue outputs
0
Number of digital inputs
8
Number of digital outputs
6
Ethernet-connections
2
Supporting protocol for IEC 61850 Ethernet
Yes
Supporting protocol for OPC UA PubSub
No
Supporting protocol for PROFIBUS
Yes
Supporting protocol for MODBUS
Yes
Supporting protocol for PROFINET IO
No
Supporting protocol for other bus systems
Yes
With audit logging (audit log)
No
With firmware signature
No
With logging of security events (security event log)
No
With Role Based Access Control (RBAC)
No
Web server with HTTPS transfer protocol
Yes
Height
(mm)
160
Depth
(mm)
135.3
Degree of protection (IP), front side
Other
Stock and logistics
Height
29.5 cm
Width
26.4 cm
Depth
37.8 cm
Packaging
box
Weight
3.6 kg
HS code
9030390000
