Schneider Electric
METSEPM3200
Multifunction measuring instrument
Manufacturer part number: METSEPM3200
Serie: PowerLogic PM3000-serie
EAN-code: 3606480481581
SKU Omnical: 2085666
Stock: 0.
Estimated lead time: 11 days *
PreOrder
T27
€
287,16
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

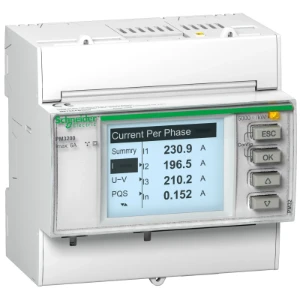

METSEPM3200 Schneider Electric Multifunction measuring instrument
Schneider Electric Multifunction measuring instrument Powerlogic - PM3200 - Basis energiemeter - Multitarief - DIN
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Ampere meter
Yes
Blind power meter
Yes
With rotational speed meter
No
Frequency meter
No
Pulse counter
No
Width
(mm)
90
Voltmeter
Yes
Effective power measurement device
Yes
Height
(mm)
95
Depth
(mm)
70
Sampling frequency
(Hz)
3200
Number of voltage measurement inputs
4
Number of current measurement inputs
6
Voltage type of supply voltage
AC/DC
Supply voltage AC 50 Hz
(V)
173 - 480
Supply voltage AC 60 Hz
(V)
173 - 480
Supply voltage DC
(V)
100 - 300
Measuring range for frequency
(Hz)
45 - 65
Display
LCD
Remote display
No
Display resolution (horizontal)
(px)
128
Display resolution (vertical)
(px)
96
Number of analogue inputs
0
Number of analogue outputs
0
Number of digital inputs
0
Number of digital outputs
0
Ethernet-connections
0
Supporting protocol for IEC 61850 Ethernet
No
Supporting protocol for OPC UA PubSub
No
Supporting protocol for PROFIBUS
No
Supporting protocol for MODBUS
Yes
Supporting protocol for PROFINET IO
No
Supporting protocol for other bus systems
No
With audit logging (audit log)
No
With firmware signature
No
With logging of security events (security event log)
No
With Role Based Access Control (RBAC)
No
Web server with HTTPS transfer protocol
No
Degree of protection (IP), front side
IP40
Model
Measurement transformer
Pole type
Three conductor/four conductor
Mounting method
DIN rail
Harmonics measurement
Yes
Apparent power
Yes
Power factor
Yes
Step angle (cos phi)
No
Measured value memory
No
Measurement type load profile
No
Nominal current (In)
(A)
5
Max. current (Imax)
(A)
6
With communication interface KNX
No
Wth communication interface M-Bus
No
With communication interface RS-485
No
Stock and logistics
Height
8.8 cm
Width
13.2 cm
Depth
13.7 cm
Packaging
box
Weight
0.384 kg
HS code
9028309000
Country of Origin
CN
