Schneider Electric
METSEPM8244
Multifunction measuring instrument
Manufacturer part number: METSEPM8244
Serie: PowerLogic PM8000 series
EAN-code: 3606480701979
SKU Omnical: 2322757
Stock: 0.
Estimated lead time: 14 days *
PreOrder
ZFM
$
2,732.75
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

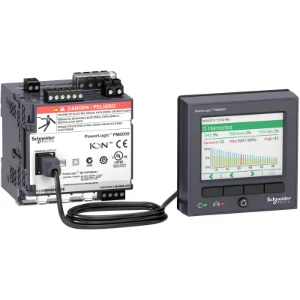

METSEPM8244 Schneider Electric Multifunction measuring instrument
Schneider Electric Multifunction measuring instrument Powerlogic - PM8244 - Power Quality Meter - 0.2S - Class S - 63ste har
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Ampere meter
Yes
Blind power meter
Yes
With rotational speed meter
No
Frequency meter
Yes
Pulse counter
No
Width
(mm)
90.5
Voltmeter
Yes
Effective power measurement device
Yes
Height
(mm)
90.5
Depth
(mm)
90.8
Accuracy class active energy according to IEC 62053-22
0.2S
Accuracy class reactive energy according to IEC 62053-23
Other
Sampling frequency
(Hz)
25600
Number of voltage measurement inputs
4
Number of current measurement inputs
8
Voltage type of supply voltage
AC/DC
Supply voltage AC 50 Hz
(V)
90 - 415
Supply voltage AC 60 Hz
(V)
90 - 415
Supply voltage DC
(V)
110 - 415
Measuring range for frequency
(Hz)
42 - 69
Display
None
Remote display
Yes
Display resolution (horizontal)
(px)
320
Display resolution (vertical)
(px)
240
Number of analogue inputs
0
Number of analogue outputs
0
Number of digital inputs
3
Number of digital outputs
1
Ethernet-connections
2
Supporting protocol for IEC 61850 Ethernet
Yes
Supporting protocol for OPC UA PubSub
No
Supporting protocol for PROFIBUS
No
Supporting protocol for MODBUS
Yes
Supporting protocol for PROFINET IO
No
Supporting protocol for other bus systems
Yes
With audit logging (audit log)
Yes
With firmware signature
No
With logging of security events (security event log)
Yes
With Role Based Access Control (RBAC)
No
Web server with HTTPS transfer protocol
Yes
Degree of protection (IP), front side
Other
Model
Measurement transformer
Pole type
Three conductor/four conductor
Mounting method
Built-in
Harmonics measurement
Yes
Apparent power
Yes
Power factor
Yes
Step angle (cos phi)
Yes
Measured value memory
Yes
Measurement type load profile
Yes
Calibrated
Yes
Pulse output
Electrical
Nominal current (In)
(A)
10
Max. current (Imax)
(A)
10
With communication interface KNX
No
Wth communication interface M-Bus
No
With communication interface RS-485
Yes
Stock and logistics
Height
13.8 cm
Width
14 cm
Depth
36.8 cm
Packaging
box
Weight
1.437 kg
HS code
9028309000
