Schneider Electric
MF20SR-24M
Electric servomotor
Manufacturer part number: MF20SR-24M
Serie: HVAC
EAN-code: 3606481515308
SKU Omnical: 3077180
Stock: 0.
Estimated lead time: 13 days *
PreOrder
XHW
€
957,40
per item
€
779,32
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

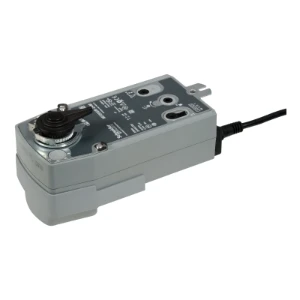

MF20SR-24M Schneider Electric Electric servomotor
Schneider Electric Electric servomotor PTPRD_ODA_PHOTO_Integration
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for valve
Yes
Suitable for air accessory
No
Supply voltage
24 V AC/DC
Control signal
2-10 V
Model
Rotating
Width
(mm)
285
Connection to stop valve
None
With top flange direct mount according to ISO 5211
No
Return at zero supply voltage
No
Deactivated when closed
Yes
Automatic travel recognition
No
Adjustable position feedback signal
No
Auxiliary contacts
No
Position reporting system
None
Auxiliary contacts optional
No
End contacts
None
Adjustable operating range
No
With mechanical setting indicator
Yes
Suitable for manual operation
Yes
Operating time
(s)
90
Potential free switch contact
No
Self-adjusting travel length
No
Max. angle of rotation
(°)
90
With safety function
Yes
Max. electric power input
(VA)
18
Allowable relative humidity
(%)
0 - 95
Height
(mm)
105
Explosion-proof
No
Depth
(mm)
101
Material housing
Other
Energy consumption in operation
(W)
5.5
Energy consumption at rest
(W)
3
Regulation type on/off
No
Regulation type modulating
Yes
Regulation type splitrange
No
Torque
(Nmt)
20
Degree of protection (NEMA)
3
Degree of protection (IP)
IP54
Ambient temperature
(°C)
-30 - 50
Stock and logistics
Height
9.9 cm
Width
12.2 cm
Depth
28 cm
Packaging
box
Weight
2.355 kg
HS code
8501109190
