Schneider Electric
MG350-24MP
Electric servomotor
Manufacturer part number: MG350-24MP
Serie: SmartStruxure
EAN-code: 7332552015793
SKU Omnical: 3077196
Stock: 0.
Estimated lead time: 6 days *
PreOrder
XHW
€
291,90
per item
€
237,61
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

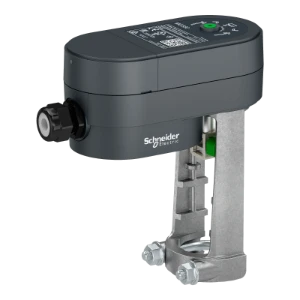

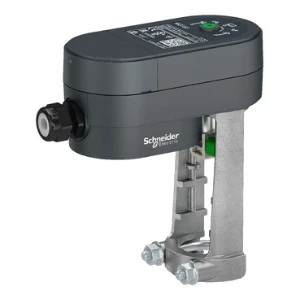

MG350-24MP Schneider Electric Electric servomotor
Schneider Electric Electric servomotor Electric Actuator, Modulating, Non-Spring Return, 24 VAC, 300 N, Linea
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for valve
Yes
Suitable for air accessory
No
Supply voltage
24 V AC/DC
Control signal
Other
Model
Linear
Width
(mm)
190
Length of connection cable
(m)
6.6
Transmission
Magnetic
Connection to stop valve
Other
With top flange direct mount according to ISO 5211
No
Return at zero supply voltage
No
Deactivated when closed
No
Automatic travel recognition
No
Adjustable position feedback signal
Yes
Auxiliary contacts
No
Position reporting system
Other
Auxiliary contacts optional
No
End contacts
None
Adjustable operating range
Yes
With mechanical setting indicator
No
Suitable for manual operation
Yes
Operating time
(s)
80
Potential free switch contact
Yes
Adjusting force
(N)
350
Stroke length
(mm)
21.5
Self-adjusting travel length
No
With safety function
No
Max. electric power input
(VA)
7.2
Allowable relative humidity
(%)
5 - 95
Height
(mm)
82
Explosion-proof
No
Depth
(mm)
149
Material housing
Other
Energy consumption at rest
(W)
3
Regulation type on/off
No
Regulation type modulating
Yes
Regulation type splitrange
No
Degree of protection (NEMA)
3
Degree of protection (IP)
IP53
Ambient temperature
(°C)
-5 - 55
Stock and logistics
Height
17.6 cm
Width
19 cm
Depth
8.6 cm
Packaging
box
Weight
0.841 kg
HS code
8501200090
