Schneider Electric
MG350S-24F
Electric servomotor
Manufacturer part number: MG350S-24F
Serie: Damper Actuators
EAN-code: 7332552010927
SKU Omnical: 3077199
Stock: 0.
Estimated lead time: 6 days *
PreOrder
XHW
$
323.22
per item
$
263.10
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

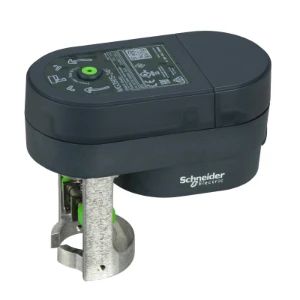

MG350S-24F Schneider Electric Electric servomotor
Schneider Electric Electric servomotor Act: Elec, 3P Float, NSR, 24 VAC, 350 N, Linear, LED, IP53
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for valve
Yes
Suitable for air accessory
Yes
Supply voltage
24 V AC/DC
Control signal
Three-point
Model
Linear
Connection to stop valve
None
With top flange direct mount according to ISO 5211
No
Return at zero supply voltage
No
Deactivated when closed
No
Automatic travel recognition
No
Adjustable position feedback signal
Yes
Auxiliary contacts
Yes
Position reporting system
None
Auxiliary contacts optional
No
End contacts
None
Adjustable operating range
No
With mechanical setting indicator
Yes
Suitable for manual operation
Yes
Operating time
(s)
102
Potential free switch contact
No
Adjusting force
(N)
350
Stroke length
(mm)
0.938
Self-adjusting travel length
No
With safety function
No
Max. electric power input
(VA)
5
Allowable relative humidity
(%)
5 - 95
Explosion-proof
No
Energy consumption at rest
(W)
3
Regulation type on/off
No
Regulation type modulating
No
Regulation type splitrange
No
Degree of protection (NEMA)
3
Degree of protection (IP)
IP53
Ambient temperature
(°C)
-5 - 55
Stock and logistics
Height
17.6 cm
Width
14 cm
Depth
8.6 cm
Packaging
box
Weight
0.725 kg
HS code
8501200090
