Schneider Electric
MTN5570-1019

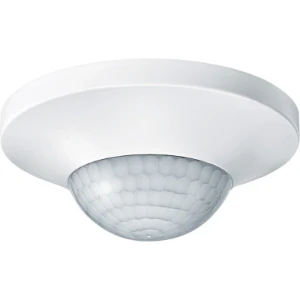

Movement sensor / presence detector complete
Manufacturer part number: MTN5570-1019
Serie: ARGUS - aanwezigheidsmelders
EAN-code: 3606480467455
SKU Omnical: 2471462
Stock: 0.
Estimated lead time: 22 days *
PreOrder
B79
€
143,50
per item
€
109,63
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
MTN5570-1019 Schneider Electric Movement sensor / presence detector complete
Schneider Electric Movement sensor / presence detector complete Aanwezigheidsmelder - ARGUS Slave - Polarwit
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Presence detector
Constant light control
No
HVAC-control
No
Forced switch off
No
Animal zone
No
Width
(mm)
116
Creep-under protection
No
Networkable
Yes
Optimum mounting height
(m)
2.5
Staircase monitoring
Yes
Bridging switch
No
Max. transmission range sideways
(m)
7
Max. transmission range frontally
(m)
7
Diameter detection range on floor
(m)
14
Suitable for wireless transmission
No
Remote operation
No
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
With signal unit
No
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Mounting method
Other
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9010
Transparent
No
Degree of protection (IP)
IP20
Voltage type
AC
Nominal voltage
(V)
230
Detection angle horizontal
(°)
0 - 360
Response value luminosity
(lx)
10 - 1000
Temperature
(°C)
0 - 25
Substation input
No
Frequency
(Hz)
50 - 60
With alarm function
No
Height
(mm)
116
Depth
(mm)
72
Sensor type
Passive infrared
With DALI interface
No
With remote control
No
Switching-on delay
(s)
0
Suitable for C-load
No
Number of switching zones
136
Forced switch on
No
Scan angle
(°)
360
Max. presence range
(m²)
113
Suitable for ceiling mounting
Yes
Suitable for wall mounting
No
Connection type
Screwed terminal
Anti-bacterial treatment
No
Impact strength
IK02
Diameter
(mm)
116
Built-in width
(mm)
60
Built-in depth
(mm)
30
Built-in length
(mm)
60
Built-in diameter
(mm)
60
Min. depth of built-in installation box
(mm)
46
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Stock and logistics
Height
10.1 cm
Width
14.4 cm
Depth
18 cm
Packaging
box
Weight
0.132 kg
HS code
8536508090
