Schneider Electric
NSYTRV22
Feed-through terminal block
Manufacturer part number: NSYTRV22
Serie: Linergy klemblokken en aansluitbokk
EAN-code: 3606480531798
SKU Omnical: 2095216
Stock: 0.
Estimated lead time: 6 days *
PreOrder
T73
$
138.97
per 100 items
$
83.38
per 100 items
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

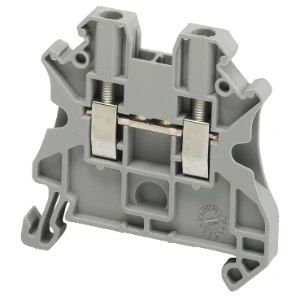

NSYTRV22 Schneider Electric Feed-through terminal block
Schneider Electric Feed-through terminal block Linergy - Doorvoerklem - 2,5mm² - 24A - Enkel niveau - Schroef - Grijs
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.2 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.14 - 4
Connectable conductor cross section multi-wired
(mm²)
0.14 - 4
Rated current In
(A)
24
Width
(mm)
5.2
Rated voltage
(V)
1000
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Connection position
Sideways
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-40 - 130
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5.2
Height at lowest possible mounting height
(mm)
47.5
Length
(mm)
47.7
Explosion-tested version 'Ex e'
Yes
Closing plate required
Yes
Colour
Grey
Internally connected stages
No
Height
(mm)
47.5
Depth
(mm)
47.7
Stock and logistics
Height
0.007 cm
Width
0.048 cm
Depth
0.048 cm
Packaging
box
Weight
0.008 kg
HS code
8536901000
Country of Origin
DE
