Schneider Electric

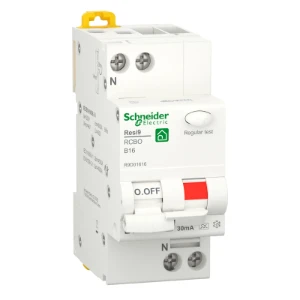

R9D01616
Earth leakage circuit breaker
Manufacturer part number: R9D01616
Serie: Resi9
EAN-code: 3606489661977
SKU Omnical: 4096025
Stock: 0.
Estimated lead time: 6 days *
PreOrder
XHC
$
138.63
per item
$
66.41
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
R9D01616 Schneider Electric Earth leakage circuit breaker
Schneider Electric Earth leakage circuit breaker Resi9 - Aardlekautomaat - 1P+N - 16A - B-Karakteristiek - 6000A - 30mA
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles (total)
2
Number of protected poles
1
Rated current
(A)
16
Rated fault current
(A)
0.03
Release characteristic
B
Concurrently switching neutral conductor
Yes
Leakage current type
A
Rated voltage
(V)
230
Current limiting class
3
Frequency
50 Hz
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
2
Built-in depth
(mm)
44.5
Degree of protection (IP)
IP20
Surge current capacity
(kA)
0.25
Voltage type
AC
Anti-nuisance tripping version
No
Rated insulation voltage Ui
(V)
400
Rated impulse withstand voltage Uimp
(kV)
4
Rated short-circuit breaking capacity according to EN 61009
(kA)
6
Rated short-circuit breaking capacity Icn according to EN 61009-1
(kA)
6
Disconnection characteristic
Undelayed
With interlocking device
Yes
Ambient temperature during operating
(°C)
-25 - 40
Connectable conductor cross section solid-core
(mm²)
1 - 16
Connectable conductor cross section multi-wired
(mm²)
1 - 10
Flush-mounted installation
No
Stock and logistics
Height
4.1 cm
Width
8.4 cm
Depth
9.9 cm
Packaging
box
Weight
212 g
HS code
8536201090
