Schneider Electric
R9D54716
Earth leakage circuit breaker
Manufacturer part number: R9D54716
Serie: Resi9
EAN-code: 3606481905215
SKU Omnical: 4096028
Stock: 0.
Estimated lead time: 6 days *
PreOrder
XHC
$
142.32
per item
$
68.17
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

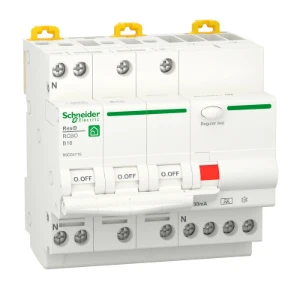

R9D54716 Schneider Electric Earth leakage circuit breaker
Schneider Electric Earth leakage circuit breaker Resi9 - Aardlekautomaat - 3P+N - 16A - B-Karakteristiek - 6000A - 30mA
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles (total)
4
Number of protected poles
3
Rated current
(A)
16
Rated fault current
(A)
0.03
Release characteristic
B
Concurrently switching neutral conductor
Yes
Leakage current type
A
Rated voltage
(V)
400
Frequency
50 Hz
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
4
Built-in depth
(mm)
44.5
Degree of protection (IP)
IP20
Surge current capacity
(kA)
0.25
Voltage type
AC
Anti-nuisance tripping version
No
Rated insulation voltage Ui
(V)
400
Rated impulse withstand voltage Uimp
(kV)
4
Rated short-circuit breaking capacity according to EN 61009
(kA)
6
Rated short-circuit breaking capacity Icn according to EN 61009-1
(kA)
6
Disconnection characteristic
Undelayed
With interlocking device
No
Ambient temperature during operating
(°C)
-25 - 60
Connectable conductor cross section solid-core
(mm²)
1 - 16
Connectable conductor cross section multi-wired
(mm²)
1 - 10
Flush-mounted installation
No
Stock and logistics
Height
8.5 cm
Width
11.5 cm
Depth
12.5 cm
Packaging
box
Weight
450 g
HS code
8536201090
