Schneider Electric
R9D55625
Earth leakage circuit breaker
Manufacturer part number: R9D55625
Serie: Resi9
EAN-code: 3606481905208
SKU Omnical: 4096033
Stock: 0.
Estimated lead time: 6 days *
PreOrder
XHC
€
149,80
per item
€
71,75
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

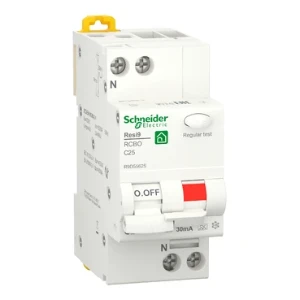

R9D55625 Schneider Electric Earth leakage circuit breaker
Schneider Electric Earth leakage circuit breaker Resi9 - Aardlekautomaat - 1P+N - 25A - C-Karakteristiek - 6000A - 30mA
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles (total)
2
Number of protected poles
1
Rated current
(A)
25
Rated fault current
(A)
0.03
Release characteristic
C
Concurrently switching neutral conductor
Yes
Leakage current type
A
Rated voltage
(V)
230
Frequency
50 Hz
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
2
Built-in depth
(mm)
44.5
Degree of protection (IP)
IP20
Surge current capacity
(kA)
0.25
Voltage type
AC
Anti-nuisance tripping version
No
Rated insulation voltage Ui
(V)
400
Rated impulse withstand voltage Uimp
(kV)
4
Rated short-circuit breaking capacity according to EN 61009
(kA)
6
Rated short-circuit breaking capacity Icn according to EN 61009-1
(kA)
6
Disconnection characteristic
Undelayed
With interlocking device
No
Ambient temperature during operating
(°C)
-25 - 60
Connectable conductor cross section solid-core
(mm²)
1 - 16
Connectable conductor cross section multi-wired
(mm²)
1 - 10
Flush-mounted installation
No
Stock and logistics
Height
0.04 cm
Width
0.083 cm
Depth
0.1 cm
Packaging
box
Weight
0.217 kg
HS code
8536201090
Country of Origin
ES
