Schneider Electric R9L12610
Schneider Electric

R9L12610

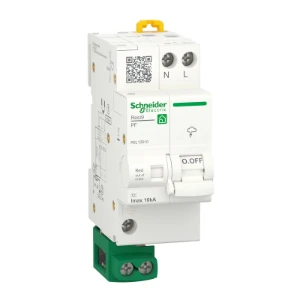

Surge protection device for power supply systems
Manufacturer part number: R9L12610
Serie: Resi9

EAN-code: 3606481905468
SKU Omnical: 4096043

Stock: 0.

Estimated lead time: 6 days *
PreOrder

XHC
$ 239.75 per item
$ 114.84 per item
CAD | Excluding VAT

Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
R9L12610 Schneider Electric Surge protection device for power supply systems
Schneider Electric Surge protection device for power supply systems Resi9 - Overspanningsbeveiliging - 1P+N - 10kA - Type 2
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.

Datasheet

Nominal discharge surge current (8/20) (kA)
5
Nominal voltage AC (V)
230
Max. continuous voltage AC (V)
275
Voltage protection level (kV)
1.5
Voltage protection level L-N (kV)
1.5
Voltage protection level N-PE (kV)
1.5
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
2 modular spacing
Max. conductor cross section solid (solid, stranded) (mm²)
25
Max. conductor cross section flexible (fine-strand) (mm²)
16
With remote signalling contact
No
Integrated backup fuse
No
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)
IP20
System configuration DC
No
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-C-S
No
System configuration TN-S
Yes
System configuration TT
Yes
System configuration other
No
Number of conductors (without earthing)
2
Short-circuit breaking capacity (Isccr) (kA)
6
Max. discharge surge current (8/20) (kA)
10
Integrated short-circuit protection
No
Leakage-current free
No

Stock and logistics

Height
8.3 cm
Width
12 cm
Depth
15.4 cm

Packaging
box
Weight
276 g
HS code
8536303000
