Schneider Electric
V01
Switch disconnector
Manufacturer part number: V01
Serie: TeSys Vario, Mini-Vario
EAN-code: 3389110448894
SKU Omnical: 1133159
Stock: 0.
Estimated lead time: 6 days *
PreOrder
S78
€
27,00
per item
€
18,33
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

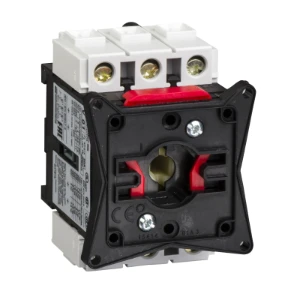

V01 Schneider Electric Switch disconnector
Schneider Electric Switch disconnector TeSys Vario - Basisblok voor lastscheider - 3M - 20A
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
3
Rated permanent current Iu
(A)
20
Version as main switch
No
Version as maintenance-/service switch
No
Version as safety switch
No
Version as emergency stop installation
No
Device construction
Built-in device fixed built-in technique
Max. rated operation voltage Ue AC
(V)
690
Rated operation power at AC-23, 400 V
(kW)
5.5
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Conditioned rated short-circuit current Iq
(kA)
10
Suitable for floor mounting
No
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
Yes
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Interlockable
No
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP20
Version as reversing switch
No
Rated operating voltage
(V)
690 - 690
Rated permanent current at AC-21, 400 V
(A)
20
Rated operation power at AC-3, 400 V
(kW)
4
Rated short-time withstand current lcw
(kA)
0.3
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
11
Stock and logistics
Height
11.7 cm
Width
8.3 cm
Depth
7.8 cm
Packaging
box
Weight
0.174 kg
HS code
8538909999
Country of Origin
CZ
