Schneider Electric
VB601R-15B

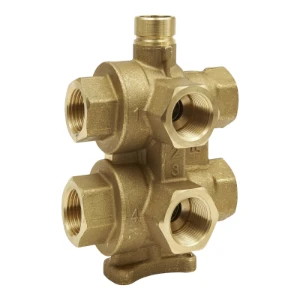

Six-way control valve
Manufacturer part number: VB601R-15B
Serie: EcoStruxure
EAN-code: 7332552014956
SKU Omnical: 3077281
Stock: 0.
Estimated lead time: 6 days *
PreOrder
XHW
€
164,60
per item
€
133,98
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
VB601R-15B Schneider Electric Six-way control valve
Schneider Electric Six-way control valve 6 WAY DN15 CHANGE OVER VALVE
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Housing material
Brass
Surface protection
Chromium-plated
Nominal diameter
DN 15
Connections
Internal thread
Article compression class
PN 16
Max. pressure difference in opened position
(kPa)
3.6
Max. medium temperature (continuous)
(°C)
90
Min. medium temperature (continuous)
(°C)
0
Kvs value 1
2.4
Leakage loss of Kvs value 1
(%)
0.01
Characteristic curve
Linear
Built-in pressure relief valve
No
Reversing valve
No
With top flange direct mount according to ISO 5211
No
Length of connection 1
(mm)
1.5
Working length connection 1
(mm)
1.5
Length of connection 2
(mm)
1.5
Working length connection 2
(mm)
1.5
Length of connection 3
(mm)
1.5
Working length connection 3
(mm)
1.5
Length of connection 4
(mm)
1.5
Working length connection 4
(mm)
1.5
Length of connection 5
(mm)
1.5
Length of connection 6
(mm)
1.5
Working length connection 6
(mm)
1.5
Shaft height
(mm)
103
Stock and logistics
Height
14.2 cm
Width
9.2 cm
Depth
6.2 cm
Packaging
box
Weight
1.167 kg
HS code
8481805990
