Schneider Electric
VBF01GE
Switch disconnector
Manufacturer part number: VBF01GE
Serie: TeSys Vario, Mini-Vario
EAN-code: 3389110201048
SKU Omnical: 1054539
Stock: 0.
Estimated lead time: 6 days *
PreOrder
S78
$
62.02
per item
$
42.11
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

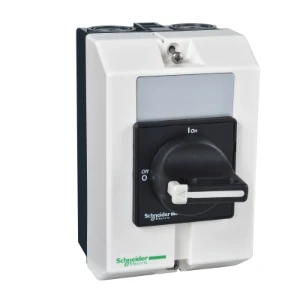

VBF01GE Schneider Electric Switch disconnector
Schneider Electric Switch disconnector TeSys Vario - Lastscheider met draaiknop in behuizing - IP65 - 3M - 16
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
3
Rated permanent current Iu
(A)
16
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
No
Version as emergency stop installation
No
Device construction
Complete device in housing
Max. rated operation voltage Ue AC
(V)
690
Rated operation power at AC-23, 400 V
(kW)
5.5
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Conditioned rated short-circuit current Iq
(kA)
10
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Type of control element
Short thumb-grip
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
Version as reversing switch
No
Rated operating voltage
(V)
690 - 690
Rated permanent current at AC-21, 400 V
(A)
20
Rated operation power at AC-3, 400 V
(kW)
4
Rated short-time withstand current lcw
(kA)
0.3
Colour control element
Black
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
11
Stock and logistics
Height
15 cm
Width
11.4 cm
Depth
16 cm
Packaging
box
Weight
0.465 kg
HS code
8536508000
Country of Origin
CZ
