Schneider Electric
VCDN20
Switch disconnector
Manufacturer part number: VCDN20
Serie: TeSys Vario, Mini-Vario
EAN-code: 3389110759914
SKU Omnical: 1090212
Stock:
56 items.
Delivery time: 1-2 business days.
InStock
S78
€
36,60
per item
€
24,85
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

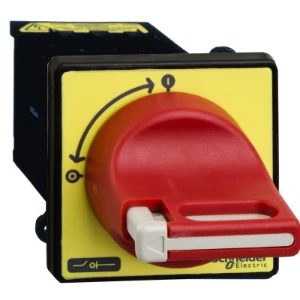

VCDN20 Schneider Electric Switch disconnector
Schneider Electric Switch disconnector TeSys Mini-Vario - Lastscheider/noodstop - 3M - 20A - Te monteren op d
Datasheet
Number of poles
3
Rated permanent current Iu
(A)
20
Version as main switch
Yes
Version as maintenance-/service switch
No
Version as safety switch
No
Version as emergency stop installation
Yes
Device construction
Built-in device fixed built-in technique
Max. rated operation voltage Ue AC
(V)
690
Rated operation power at AC-23, 400 V
(kW)
5.5
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Conditioned rated short-circuit current Iq
(kA)
6
Suitable for floor mounting
No
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
Yes
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Type of control element
Short thumb-grip
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
Version as reversing switch
No
Rated operating voltage
(V)
690 - 690
Rated permanent current at AC-21, 400 V
(A)
20
Rated operation power at AC-3, 400 V
(kW)
4
Rated short-time withstand current lcw
(kA)
0.14
Colour control element
Red
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
11
Stock and logistics
Height
7.9 cm
Width
8.5 cm
Depth
12 cm
Packaging
box
Weight
0.179 kg
HS code
8536508000
Country of Origin
CZ
