Schneider Electric
VCFN25GE
Switch disconnector
Manufacturer part number: VCFN25GE
Serie: TeSys Vario, Mini-Vario
EAN-code: 3389110897708
SKU Omnical: 2342190
Stock: 0.
Estimated lead time: 16 days *
PreOrder
S78
$
73.94
per item
$
50.20
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

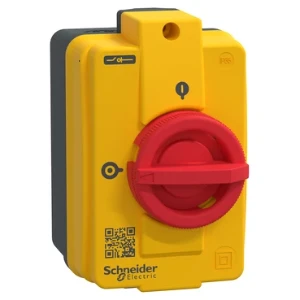

VCFN25GE Schneider Electric Switch disconnector
Schneider Electric Switch disconnector TeSys Mini-Vario - Lastscheider/noodstop in behuizing - IP65 - 3M - 20
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
3
Rated permanent current Iu
(A)
20
Version as main switch
Yes
Version as maintenance-/service switch
No
Version as safety switch
No
Version as emergency stop installation
Yes
Device construction
Complete device in housing
Max. rated operation voltage Ue AC
(V)
690
Rated operation power at AC-23, 400 V
(kW)
7.5
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Conditioned rated short-circuit current Iq
(kA)
10
Suitable for floor mounting
No
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Type of control element
Turn button
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP55
Version as reversing switch
No
Rated operating voltage
(V)
690 - 690
Rated permanent current at AC-21, 400 V
(A)
20
Rated operation power at AC-3, 400 V
(kW)
5.5
Rated short-time withstand current lcw
(kA)
0.3
Switching power at 400 V
(kW)
11
Colour control element
Red
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
14.5
Stock and logistics
Height
0.085 cm
Width
0.115 cm
Depth
0.135 cm
Packaging
box
Weight
0.344 kg
HS code
8536508000
Country of Origin
CZ
