Schneider Electric
VG221F-150C
Two way control valve
Manufacturer part number: VG221F-150C
Serie: Venta
EAN-code: 3606489773915
SKU Omnical: 3077329
Stock: 0.
Estimated lead time: 6 days *
PreOrder
XHW
€
2.321,00
per item
€
1.889,29
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

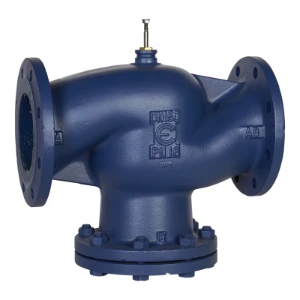

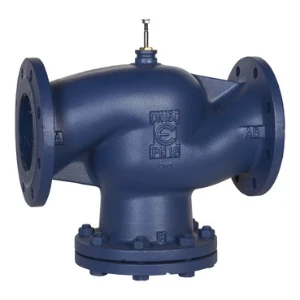

VG221F-150C Schneider Electric Two way control valve
Schneider Electric Two way control valve VB: 50 mm, 2W, Globe, FLG, UC, BR, 150 kvs, Glycol 25-50% and Water, N
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Housing material
Cast iron
Material quality
Cast iron GG 25 (GJL-250)
Nominal diameter
DN 150
Outer pipe diameter all connections
(mm)
150
Connections
Flange
Article compression class
PN 16
Flange compression class
PN 16
Max. medium temperature (continuous)
(°C)
150
Min. medium temperature (continuous)
(°C)
-10
Surface protection
Untreated
Kvs value
300
Leakage loss of KVS value
(%)
0.03
Characteristic curve
Equal percentage
Stroke length
(mm)
45
Automatic flow control
No
Nominal diameter connection 1
6 inch (150)
Outer pipe diameter connection 1
(mm)
150
Connection 1
Flange
Material housing
Cast iron
Suitable for tap water
Yes
Suitable for process water
Yes
Suitable for cooling
Yes
Stock and logistics
Height
50 cm
Width
28.5 cm
Depth
48 cm
Packaging
box
Weight
75 kg
HS code
8481807990
