Schneider Electric
VGS211F-32CS

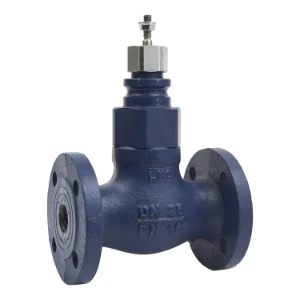

Two way control valve
Manufacturer part number: VGS211F-32CS
Serie: Venta
EAN-code: 3606489660956
SKU Omnical: 3077353
Stock: 0.
Estimated lead time: 19 days *
PreOrder
XHW
€
1.050,00
per item
€
854,70
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
VGS211F-32CS Schneider Electric Two way control valve
Schneider Electric Two way control valve Vgs211f 2w afsluiter dn32 kvs 16
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Housing material
Cast iron
Material quality
Cast iron GG 25 (GJL-250)
Nominal diameter
DN 32
Outer pipe diameter all connections
(mm)
32
Connections
Flange
Article compression class
PN 16
Flange compression class
PN 16
Max. medium temperature (continuous)
(°C)
200
Min. medium temperature (continuous)
(°C)
-10
Surface protection
Untreated
Kvs value
16
Leakage loss of KVS value
(%)
0.02
Characteristic curve
Equal percentage
Stroke length
(mm)
25
Automatic flow control
No
Nominal diameter connection 1
1 1/4 inch (32)
Outer pipe diameter connection 1
(mm)
32
Connection 1
Flange
Material housing
Cast iron
Suitable for heating
Yes
Suitable for tap water
Yes
Suitable for process water
Yes
Suitable for cooling
Yes
Stock and logistics
Height
27 cm
Width
15 cm
Depth
18 cm
Packaging
box
Weight
8.7 kg
HS code
8481807100
