Schneider Electric
VGS211F-65CS
Two way control valve
Manufacturer part number: VGS211F-65CS
Serie: Venta
EAN-code: 3606489660987
SKU Omnical: 3077356
Stock: 0.
Estimated lead time: 17 days *
PreOrder
XHW
$
2,264.40
per item
$
1,843.22
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

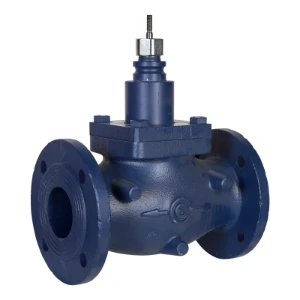

VGS211F-65CS Schneider Electric Two way control valve
Schneider Electric Two way control valve Vgs211f 2w afsluiter dn65 kvs 63
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Housing material
Cast iron
Material quality
Cast iron GG 25 (GJL-250)
Nominal diameter
DN 65
Outer pipe diameter all connections
(mm)
65
Connections
Flange
Article compression class
PN 16
Flange compression class
PN 16
Max. medium temperature (continuous)
(°C)
200
Min. medium temperature (continuous)
(°C)
-10
Surface protection
Untreated
Kvs value
63
Leakage loss of KVS value
(%)
0.02
Characteristic curve
Equal percentage
Stroke length
(mm)
45
Automatic flow control
No
Nominal diameter connection 1
2 1/2 inch (65)
Outer pipe diameter connection 1
(mm)
65
Connection 1
Flange
Material housing
Cast iron
Suitable for heating
Yes
Suitable for tap water
Yes
Suitable for process water
Yes
Suitable for cooling
Yes
Stock and logistics
Height
36 cm
Width
20 cm
Depth
27 cm
Packaging
box
Weight
20.1 kg
HS code
8481807100
