Schneider Electric

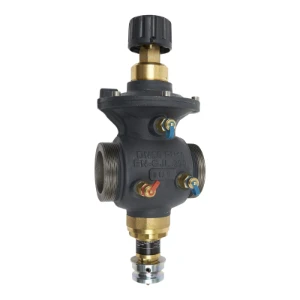

VP220E-50CQS
Electrically controlled two-way control valve
Manufacturer part number: VP220E-50CQS
Serie: SmartStruxure
EAN-code: 7332552014505
SKU Omnical: 3077362
Stock: 0.
Estimated lead time: 6 days *
PreOrder
XHW
€
974,70
per item
€
793,41
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
VP220E-50CQS Schneider Electric Electrically controlled two-way control valve
Schneider Electric Electrically controlled two-way control valve VB: 50 mm (2 in), 2W, PI, G ext, 5 to 12.5 m3/h (20.01 to 55.04 gpm),
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Housing material
Cast iron
Material quality
Cast iron GG 25 (GJL-250)
Nominal diameter
2 inch (50)
Outer pipe diameter all connections
(mm)
50
Connections
Other
Width
(mm)
222
With coupling connection 1
No
With coupling connection 2
No
Article compression class
PN 16
Flange compression class
PN 16
Max. pressure difference in opened position
(bar)
16
Max. medium temperature (continuous)
(°C)
120
Min. medium temperature (continuous)
(°C)
-10
Surface protection
Untreated
Leakage loss of KVS value
(%)
0.05
Characteristic curve
Linear
Closing pressure
(bar)
16
Control signal
Two-point
Zero-pressure return flow
None
Position reporting system
None
Adjustable position feedback signal
No
Adjustable operating range
No
Auxiliary contacts
No
With end contacts
No
Suitable for manual operation
Yes
Explosion-proof
No
Height
(mm)
152
Ambient temperature
(°C)
-10 - 120
Stock and logistics
Height
52.2 cm
Width
22.2 cm
Depth
15.6 cm
Packaging
box
Weight
7.8 kg
HS code
8481805990
