Schneider Electric

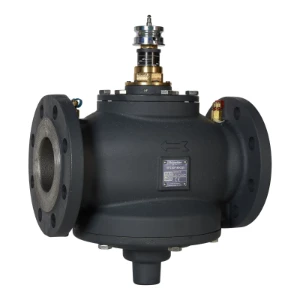

VP220F-80CQS
Electrically controlled two-way control valve
Manufacturer part number: VP220F-80CQS
Serie: SmartStruxure
EAN-code: 7332552014536
SKU Omnical: 3077366
Stock: 0.
Estimated lead time: 6 days *
PreOrder
XHW
€
3.655,00
per item
€
2.975,17
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
VP220F-80CQS Schneider Electric Electrically controlled two-way control valve
Schneider Electric Electrically controlled two-way control valve VB: 80 mm, 2W, PI, FLG, BR, 11.2 to 28 m3/h, Glycol and Water, PIBCV,
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Housing material
Cast iron
Material quality
Cast iron GG 25 (GJL-250)
Nominal diameter
3 inch (80)
Outer pipe diameter all connections
(mm)
80
Connections
Flange
Width
(mm)
66
With coupling connection 1
No
With coupling connection 2
No
Article compression class
PN 16
Flange compression class
PN 16
Max. pressure difference in opened position
(bar)
16
Max. medium temperature (continuous)
(°C)
120
Min. medium temperature (continuous)
(°C)
-10
Surface protection
Untreated
Leakage loss of KVS value
(%)
0.05
Characteristic curve
Linear
Closing pressure
(bar)
16
Control signal
Two-point
Zero-pressure return flow
None
Position reporting system
None
Adjustable position feedback signal
No
Adjustable operating range
No
Auxiliary contacts
No
With end contacts
No
Suitable for manual operation
Yes
Explosion-proof
No
Height
(mm)
32
Ambient temperature
(°C)
-10 - 120
Stock and logistics
Height
31 cm
Width
41 cm
Depth
31 cm
Packaging
box
Weight
45 kg
HS code
8481805990
