Telemecanique Sensors

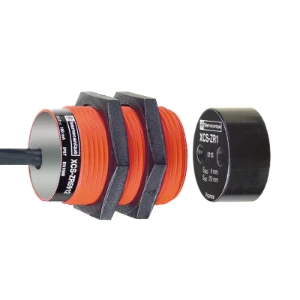

XCSDMR5902
Magnetic proximity switch
Manufacturer part number: XCSDMR5902
Serie: Preventa XCS
Type: XCSDMR5902
EAN-code: 3389110971804
SKU Omnical: 1072454
Stock: 0.
Estimated lead time: 34 days *
PreOrder
FVX
$
131.78
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
XCSDMR5902 Telemecanique Sensors Magnetic proximity switch
Telemecanique Sensors Magnetic proximity switch GECODEERDE MAGNETISCHE SCHAKELAAR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of semiconductor outputs with signalling function
0
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of actuation
Magnet
Type of interface for safety communication
Other
Type of electric connection
Cable radial
Type of switching output
Relay contact
Length of sensor
(mm)
38.5
Diameter sensor
(mm)
30
Explosion safety category for gas
None
Explosion safety category for dust
Other
Construction type housing
Cylinder, screw-thread
Material housing
Plastic
Coating housing
Other
Protected switch distance OFF
(mm)
20
Protected switch distance ON
(mm)
8
Category according to EN 954-1
1
Performance level according to EN ISO 13849-1
Level e
Max. output current at protected output
(mA)
100
Ambient temperature
(°C)
-25 - 85
Mechanical mounting condition for sensor
Not flat
Min. output current
(mA)
100
Rated supply voltage at DC
(V)
24 - 24
Voltage type
AC/DC
Cross-/short circuit identification possible
Yes
Switching distance
(mm)
20
With monitoring function downstream switching devices
No
Suitable for safety functions
Yes
Degree of protection (IP)
IP67K
SIL according to IEC 61508
3
With status indication
No
Stock and logistics
Height
4.4 cm
Width
13 cm
Depth
16.4 cm
Packaging
box
Weight
0.154 kg
HS code
8536508090
Country of Origin
FR
