Telemecanique Sensors
XCSTE7311

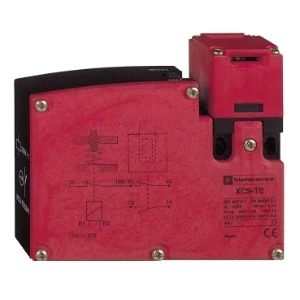

Position switch with guard locking
Manufacturer part number: XCSTE7311
Serie: Preventa XCS
Type: XCSTE7311
EAN-code: 3389110825107
SKU Omnical: 1067957
Stock: 0.
Estimated lead time: 34 days *
PreOrder
S84
$
312.69
per item
$
218.89
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
XCSTE7311 Telemecanique Sensors Position switch with guard locking
Telemecanique Sensors Position switch with guard locking VEILIGHEIDSSCHAKELAAR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
With status indication
Yes
Suitable for safety functions
Yes
Guard locking force
(N)
500
With escape release
No
Locking mechanism
Quiescent current principle
Rated control supply voltage magnet drive at AC 50 Hz
(V)
24 - 24
Rated control supply voltage magnet drive at AC 60 Hz
(V)
24 - 24
Rated control supply voltage magnet drive at DC
(V)
24 - 24
Width sensor
(mm)
110
Height of sensor
(mm)
94
Length of sensor
(mm)
33
Number of safety auxiliary contacts
0
Number of contacts as normally closed contact
2
Number of contacts as normally open contact
0
Number of contacts as change-over contact
0
Type of switching contact
Slow-action switch
Rated operation current Ie at AC-15, 125 V
(A)
3
Rated operation current Ie at AC-15, 230 V
(A)
1.5
Rated operation current Ie at DC-13, 125 V
(A)
0.55
Rated operation current Ie at DC-13, 230 V
(A)
0.27
Housing according to norm
Other
Construction type housing
Cuboid
Material housing
Plastic
Housing coating
Not applicable
Type of interface
None
Type of interface for safety communication
None
Type of electric connection
Cable entry PG
Explosion safety category for gas
None
Explosion safety category for dust
None
Ambient temperature during operating
(°C)
-25 - 60
Degree of protection (IP)
IP67K
Type of guard locking
Quiescent current principle
With auxiliary release
No
Coating housing
Other
Stock and logistics
Height
4 cm
Width
11.5 cm
Depth
10.8 cm
Packaging
box
Weight
397 g
HS code
8536508090
Country of Origin
FR
