Schneider Electric
XD5PA24
Control switch, Joystick
Manufacturer part number: XD5PA24
Serie: Harmony XB5
EAN-code: 3389110904307
SKU Omnical: 2345764
Stock: 0.
Estimated lead time: 6 days *
PreOrder
ZOJ
$
107.43
per item
$
75.20
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

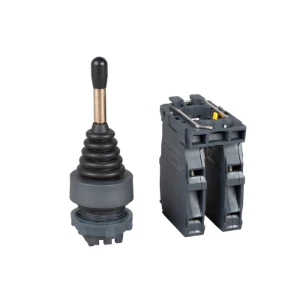

XD5PA24 Schneider Electric Control switch, Joystick
Schneider Electric Control switch, Joystick Harmony XB5, Zwenkschakelaar, 4 richtingen, Terugvering, Ø22mm, 1NO
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated operation current Ie at AC-21, 400 V
(A)
10
Centre mounting, hole diameter
(mm)
22
Joy stick length
(mm)
54
Number of actuation directions
4
Number of switch levels
1
Number of normally open contacts per actuation direction
1
Number of normally closed contacts per actuation direction
0
Number of make-and-break contacts per direction
0
With retraction in 0-position
Yes
Locking in 0-position
No
Coder
No
Analogue output signal configurable
No
Degree of protection (IP)
IP66
With front ring
Yes
Material front ring
Plastic
Colour front ring
Black
Number of switch positions
4
Degree of protection (NEMA)
Other
Stock and logistics
Height
4.5 cm
Width
5.5 cm
Depth
12.5 cm
Packaging
box
Weight
0.081 kg
HS code
8538909999
Country of Origin
FR
