Telemecanique Sensors

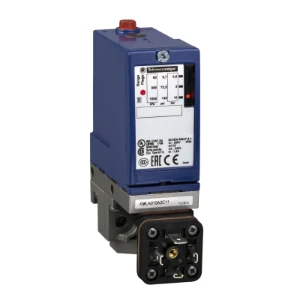

XMLA010A2C11
Pressure switch
Manufacturer part number: XMLA010A2C11
Serie: pressure sensors XM
Type: XMLA010A2C11
EAN-code: 3389110711547
SKU Omnical: 2346000
Stock: 0.
Estimated lead time: 34 days *
PreOrder
FVL
$
391.26
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
XMLA010A2C11 Telemecanique Sensors Pressure switch
Telemecanique Sensors Pressure switch DRUKSCHAK. 0,6 TOT 10 BAR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable as guard
Yes
Suitable as 2-point controller
No
Suitable as limiter
No
Max. operation pressure
(hPa)
12500
Engaging pressure
(bar)
0.6 - 10
Width
(mm)
35
Initial setting
(hPa)
600 - 10000
Switch off pressure
(bar)
0.1 - 9.5
End setting
(hPa)
100 - 9500
Pressure-switching differential
(bar)
0.5
Max. test pressure
(bar)
22.5
Bursting pressure
(bar)
45
Medium temperature
(°C)
0 - 70
Rated voltage Ue at AC 50 Hz
(V)
120 - 240
Rated voltage Ue at AC 60 Hz
(V)
120 - 240
Rated voltage Ue at DC
(V)
250 - 250
Initial value measuring range pressure
(Pa)
0
End value measuring range pressure
(Pa)
0
Rated operation power at AC-3, 400 V
(kW)
0
Switching capacity at AC-3, 240 V
(kA)
0
Rated operation current Ie at AC-1, 400 V
(A)
0
Rated operation current Ie at AC-3, 400 V
(A)
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
1
Type of electric connection
Other
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
0
With hand operation
No
With manual on/off switch
No
Degree of protection (IP)
IP65
Electronic version
Yes
Explosion-proof
No
Height
(mm)
113
Depth
(mm)
75
Connection
Internal thread cylindrical BSPP-G (ISO 228-1)
Thread size
1/4 inch
With display
No
Degree of protection (NEMA)
Other
Max. operating pressure
(hPa)
10000
Stock and logistics
Height
3.8 cm
Width
11 cm
Depth
11.8 cm
Packaging
box
Weight
741 g
HS code
9032200090
Country of Origin
CZ
