Schneider Electric

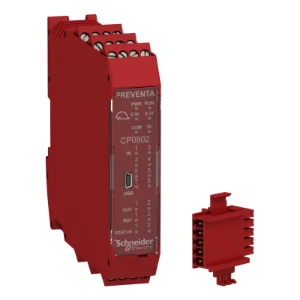

XPSMCMCP0802BC
Device for monitoring of safety-related circuits
Manufacturer part number: XPSMCMCP0802BC
Serie: Modicon MCM
EAN-code: 3606480992049
SKU Omnical: 2475063
Stock: 0.
Estimated lead time: 10 days *
PreOrder
ZSD
€
441,94
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
XPSMCMCP0802BC Schneider Electric Device for monitoring of safety-related circuits
Schneider Electric Device for monitoring of safety-related circuits Safety Controller CPU screw term. combined with backplane expansion co
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Basic device
Suitable for monitoring of position switches
Yes
Suitable for monitoring of emergency-stop circuits
Yes
Suitable for monitoring of valves
No
Suitable for monitoring of optoelectronic protection equipment
Yes
Width
(mm)
22.5
Suitable for monitoring of tactile sensors
Yes
Suitable for monitoring of magnetic switches
Yes
Suitable for monitoring of proximity switches
Yes
Type of electric connection
Screw connection
Rail mounting possible
Yes
Rated control supply voltage at DC
(V)
24 - 24
Voltage type for actuating
DC
With detachable clamps
Yes
Evaluation inputs
Other
With start input
Yes
With muting function
Yes
With feedback circuit
Yes
Number of outputs, safety related, undelayed, with contact
0
Number of outputs, safety related, delayed, with contact
0
Number of outputs, safety related, undelayed, semiconductors
2
Number of outputs, safety related, delayed, semiconductors
2
Number of outputs, signalling function, undelayed, with contact
0
Number of outputs, signalling function, delayed, with contact
0
Number of outputs, signalling function, undelayed, semiconductors
2
Number of outputs, signalling function, delayed, semiconductors
2
Type of safety according to IEC 61496-1
4
Stop category according to IEC 60204
0 + 1
Performance level according to EN ISO 13849-1
Level e
With approval for BG BIA
No
With approval according to UL
Yes
Height
(mm)
99
Depth
(mm)
114.5
SIL according to IEC 61508
3
Voltage type of supply voltage
DC
Supply voltage DC
(V)
24 - 24
Stock and logistics
Height
4.2 cm
Width
12.5 cm
Depth
16 cm
Packaging
box
Weight
0.252 kg
HS code
8537109899
