Schneider Electric

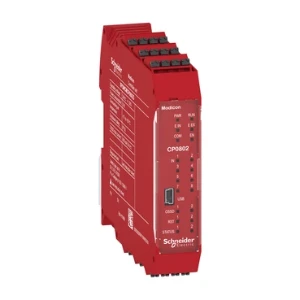

XPSMCMCP0802G
Device for monitoring of safety-related circuits
Manufacturer part number: XPSMCMCP0802G
Serie: Modicon MCM
EAN-code: 3606480748554
SKU Omnical: 3074957
Stock: 0.
Estimated lead time: 10 days *
PreOrder
ZSD
$
725.59
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
XPSMCMCP0802G Schneider Electric Device for monitoring of safety-related circuits
Schneider Electric Device for monitoring of safety-related circuits Controller with 8 inputs 2 outputs monitors expansion modules with spr
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Basic device
Suitable for monitoring of position switches
Yes
Suitable for monitoring of emergency-stop circuits
Yes
Suitable for monitoring of valves
No
Suitable for monitoring of optoelectronic protection equipment
Yes
Width
(mm)
22.5
Suitable for monitoring of tactile sensors
Yes
Suitable for monitoring of magnetic switches
Yes
Suitable for monitoring of proximity switches
Yes
Type of electric connection
Spring clamp connection
Suitable for rail mounting
Yes
Rated control supply voltage DC
(V)
24 - 24
Voltage type for actuating
DC
With detachable clamps
Yes
Evaluation inputs
Other
With start input
Yes
With muting function
Yes
With feedback circuit
Yes
Number of outputs, safety related, undelayed, with contact
0
Number of outputs, safety related, delayed, with contact
0
Number of outputs, safety related, undelayed, semiconductors
2
Number of outputs, safety related, delayed, semiconductors
2
Number of outputs, signalling function, undelayed, with contact
0
Number of outputs, signalling function, delayed, with contact
0
Number of outputs, signalling function, undelayed, semiconductors
2
Number of outputs, signalling function, delayed, semiconductors
2
Category according to EN 954-1
None
Type of safety according to IEC 61496-1
4
Stop category according to IEC 60204
0 + 1
Performance level according to EN ISO 13849-1
Level e
With approval for TÜV
Yes
With approval for BG BIA
No
With approval according to UL
Yes
Height
(mm)
99
Depth
(mm)
114.5
SIL according to IEC 61508
3
With approval for TÜV
Yes
Stock and logistics
Height
4.5 cm
Width
12.5 cm
Depth
16 cm
Packaging
box
Weight
0.244 kg
HS code
8537109899
Country of Origin
IT
