Telemecanique Sensors
XU2S18PP340WD
Through beam photoelectric sensor
Manufacturer part number: XU2S18PP340WD
Serie: Safety light curtains XUSL
Type: XU2S18PP340WD
EAN-code: 3389110106237
SKU Omnical: 1056563
Stock: 0.
Estimated lead time: 34 days *
PreOrder
S83
$
241.75
per item
$
169.22
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

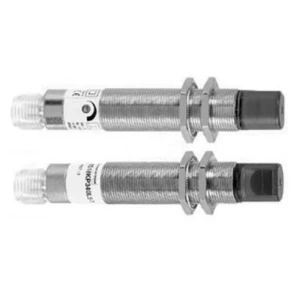

XU2S18PP340WD Telemecanique Sensors Through beam photoelectric sensor
Telemecanique Sensors Through beam photoelectric sensor VEILIGHEIDS FOTOCEL
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Scope of delivery of the one-way system
Transmitter and receiver
Max. opening angle
(°)
90
Pre failure notice
No
With time function
No
Rated switching distance
(mm)
8000
Max. switching distance
(mm)
8000
Max. output current
(mA)
35
With reflector
No
Analogue output 0 V ... 10 V
No
Analogue output 0 mA ... 20 mA
No
Analogue output 4 mA ... 20 mA
No
Analogue output -10 V ... +10 V
No
With other analogue output
No
Setting procedure
Other
With communication interface analogue
No
With communication interface AS-Interface
No
With communication interface CANOpen
No
With communication interface DeviceNet
No
With communication interface Ethernet
No
With communication interface INTERBUS
No
With communication interface PROFIBUS
No
With communication interface RS-232
No
With communication interface RS-422
No
With communication interface RS-485
No
With communication interface SSD
No
With communication interface SSI
No
Number of semiconductor outputs with signalling function
0
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of interface for safety communication
Other
Type of electric connection
Connector M12
Type of switching output
PNP/PNP
Type of switch function
Other
Operation agent-safety class
Safety class 0
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Cylinder, screw-thread
Diameter sensor
(mm)
18
Sensing mode
Light switching
Material of optical surface
Plastic
Material housing
Metal
Max. output current at protected output
(mA)
35
Ambient temperature
(°C)
-25 - 55
Response time
(ms)
0
Transmission range of the safety field
(m)
8
Switching frequency
(Hz)
500
Type of safety according to IEC 61496-1
1
Voltage type
AC/DC
With monitoring function downstream switching devices
No
Laser protection class
None
Type of light
Other
Material of cable sheath
Other
With restart blockage
No
Suitable for safety functions
No
Degree of protection (IP)
IP67K
Stock and logistics
Height
4.2 cm
Width
9.5 cm
Depth
13 cm
Packaging
box
Weight
0.165 kg
HS code
8536508090
Country of Origin
FR
