Siemens
3LD20641TC51
Switch disconnector
Manufacturer part number: 3LD20641TC51
Serie:
Type: 3LD switch disconnector, main sw...
EAN-code: 4011209512139
SKU Omnical: 2019082
Stock: 0.
Estimated lead time: 8 days *
PreOrder
S21
$
92.07
per item
$
61.13
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

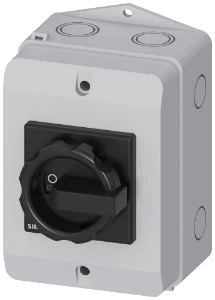

3LD20641TC51 Siemens Switch disconnector
Siemens Switch disconnector SENTRON, 3LD switch disconnector, main control switch, 4-pole, 16 A
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
4
Rated permanent current Iu
(A)
16
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
Yes
Version as emergency stop installation
No
Device construction
Built-in device fixed built-in technique
Max. rated operation voltage Ue AC
(V)
690
Rated operation power at AC-23, 400 V
(kW)
8
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Conditioned rated short-circuit current Iq
(kA)
0
Suitable for floor mounting
No
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
Yes
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Type of control element
Short thumb-grip
Interlockable
Yes
Type of electrical connection of main circuit
Frame clamp
Degree of protection (IP), front side
IP65
Version as reversing switch
No
Rated permanent current at AC-21, 400 V
(A)
16
Rated operation power at AC-3, 400 V
(kW)
6
Rated short-time withstand current lcw
(kA)
0.34
Colour control element
Black
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
16
Degree of protection (NEMA)
Other
Stock and logistics
Height
0.122 m
Width
0.105 m
Depth
0.163 m
Packaging
item
Weight
0.412 kg
HS code
85365080
Country of Origin
DE
