Siemens
3LD23050TK13
Switch disconnector
Manufacturer part number: 3LD23050TK13
Serie:
Type: 3LD switch disconnector
EAN-code: 4011209768543
SKU Omnical: 2389596
Stock: 0.
Estimated lead time: 8 days *
PreOrder
S21
$
544.81
per item
$
361.75
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

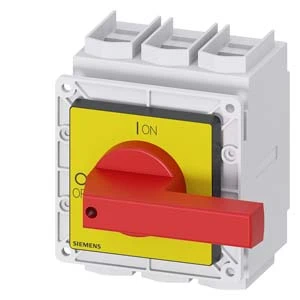

3LD23050TK13 Siemens Switch disconnector
Siemens Switch disconnector SENTRON, 3LD switch disconnector, EMERGENCY OFF switch, 3-pole, Iu: 16
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
3
Rated permanent current Iu
(A)
160
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
Yes
Version as emergency stop installation
Yes
Device construction
Built-in device fixed built-in technique
Max. rated operation voltage Ue AC
(V)
690
Rated operation power at AC-23, 400 V
(kW)
75
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Conditioned rated short-circuit current Iq
(kA)
0
Suitable for floor mounting
No
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Type of control element
Toggle
Interlockable
Yes
Type of electrical connection of main circuit
Frame clamp
Degree of protection (IP), front side
IP65
Version as reversing switch
No
Rated permanent current at AC-21, 400 V
(A)
160
Rated operation power at AC-3, 400 V
(kW)
50
Rated short-time withstand current lcw
(kA)
4
Colour control element
Red
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
132
Degree of protection (NEMA)
Other
Stock and logistics
Height
0.2 m
Width
0.22 m
Depth
0.305 m
Packaging
item
Weight
2.105 kg
HS code
85365080
Country of Origin
DE
