Siemens
3LD34481TK53
Switch disconnector
Manufacturer part number: 3LD34481TK53
Serie:
Type: Switch disconnector 3LD3, main s...
EAN-code: 4001869551937
SKU Omnical: 2500712
Stock: 0.
Estimated lead time: 8 days *
PreOrder
S21
€
120,00
per item
€
79,68
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
3LD34481TK53 Siemens Switch disconnector

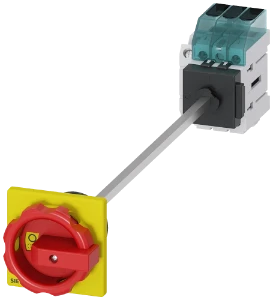

Siemens Switch disconnector Switch disconnector 3LD3, Iu 63 A main control switch 3-pole
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
3
Rated permanent current Iu
(A)
63
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
Yes
Version as emergency stop installation
Yes
Device construction
Built-in device fixed built-in technique
Max. rated operation voltage Ue AC
(V)
690
Rated operation power at AC-23, 400 V
(kW)
22
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
Yes
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
Yes
Type of control element
Short thumb-grip
Interlockable
Yes
Type of electrical connection of main circuit
Frame clamp
Degree of protection (IP), front side
IP65
Version as reversing switch
No
Rated permanent current at AC-21, 400 V
(A)
63
Rated operation power at AC-3, 400 V
(kW)
19
Rated short-time withstand current lcw
(kA)
1
Colour control element
Red
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
43
Degree of protection (NEMA)
Other
Stock and logistics
Height
0.42 m
Width
0.068 m
Depth
0.083 m
Packaging
item
Weight
0.367 kg
HS code
85365080
Country of Origin
DE
