Siemens
3RK19033AC10
Earth leakage circuit breaker
Manufacturer part number: 3RK19033AC10
Serie:
Type: RCBO elm, short-time delayed K
EAN-code: 4001869397221
SKU Omnical: 1069014
Stock: 0.
Estimated lead time: 5 days *
PreOrder
S18
€
177,79
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
3RK19033AC10 Siemens Earth leakage circuit breaker

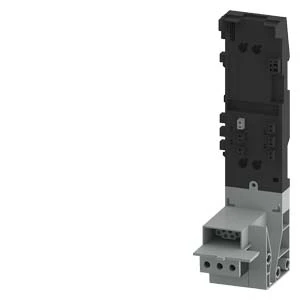

Siemens Earth leakage circuit breaker 65 mm terminal module for F-DS1E -X without supply line connection
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles (total)
4
Number of protected poles
4
Rated current
(A)
125
Rated fault current
(A)
0.3
Release characteristic
C
Concurrently switching neutral conductor
Yes
Leakage current type
B+
Rated short-circuit breaking capacity according to EN 60898
(kA)
10
Rated short-circuit breaking capacity according to IEC 60947-2
(kA)
10
Rated voltage
(V)
480
Current limiting class
3
Over voltage category
2
Pollution degree
2
Width in number of modular spacings
11
Built-in depth
(mm)
70
Degree of protection (IP)
IP20
Suitable for flush-mounted installation
Yes
Surge current capacity
(kA)
3
Voltage type
AC
Anti-nuisance tripping version
Yes
Rated insulation voltage Ui
(V)
528
Rated impulse withstand voltage Uimp
(kV)
4
Rated short-circuit breaking capacity according to EN 61009
(kA)
10
Rated short-circuit breaking capacity Icn according to EN 61009-1
(kA)
10
Disconnection characteristic
Other
With interlocking device
Yes
Ambient temperature during operating
(°C)
-25 - 55
Connectable conductor cross section solid-core
(mm²)
6 - 50
Connectable conductor cross section multi-wired
(mm²)
6 - 50
Flush-mounted installation
Yes
Stock and logistics
Height
0.136 m
Width
0.083 m
Depth
0.298 m
Packaging
item
Weight
0.47 kg
HS code
85369095
Country of Origin
DE
