Siemens
3RM13022AA04
Motor starter/Motor starter combination
Manufacturer part number: 3RM13022AA04
Serie:
Type: REV. STARTER 0.4-2.0A, 24V SAFET...
EAN-code: 4011209914544
SKU Omnical: 1159717
Stock: 0.
Estimated lead time: 10 days *
PreOrder
S18
€
181,00
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

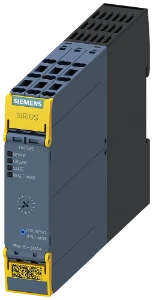

3RM13022AA04 Siemens Motor starter/Motor starter combination
Siemens Motor starter/Motor starter combination Reversing starter failsafe, 0.4-2 A, 24 V DC, spring-type terminal
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated control supply voltage at AC 50 Hz
(V)
0 - 0
Rated control supply voltage at AC 60 Hz
(V)
0 - 0
Rated control supply voltage at DC
(V)
24 - 24
Voltage type for actuating
DC
Rated operation power at AC-3, 400 V
(kW)
0.75
Width
(mm)
22.5
Rated operation current Ie
(A)
2
Overload release current setting
(A)
2 - 2
With short-circuit release
No
Type of electrical connection of main circuit
Other
Degree of protection (IP)
IP20
Height
(mm)
100
Depth
(mm)
141.6
Type of motor starter
Other
Rated operation power at AC-3, 230 V, 3-phase
(kW)
0.37
Rated power, 460 V, 60 Hz, 3-phase
(kW)
0.552
Rated operation current at AC-3, 400 V
(A)
2
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Ambient temperature, upper operating limit
(°C)
60
Temperature compensated overload protection
No
Release class
CLASS 10 A
Type of electrical connection for auxiliary- and control current circuit
Other
Rail mounting possible
Yes
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
With transformer
No
Number of command positions
0
Suitable for emergency stop
No
Number of indicator lights
4
External reset possible
No
With fuse
No
Stock and logistics
Height
0.152 m
Width
0.036 m
Depth
0.109 m
Packaging
item
Weight
0.32 kg
HS code
85371098
Country of Origin
DE
