Siemens
3RP25051BT20
Timer relay
Manufacturer part number: 3RP25051BT20
Serie:
Type: T-REL. MULTI-F. 2CO CONT. 400-44...
EAN-code: 4011209944350
SKU Omnical: 2105971
Stock: 0.
Estimated lead time: 10 days *
PreOrder
S10
$
217.99
per item
$
144.75
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

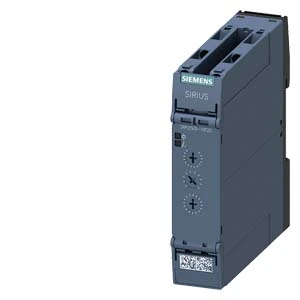

3RP25051BT20 Siemens Timer relay
Siemens Timer relay Timing relay, 2 CO, 27 functions, 7 time ranges (0.05s-100h)
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of electric connection
Screw connection
Function delay-on energization
Yes
Function delay on de-energization
No
Function floating contact on energization
Yes
Function floating contact on de-energization
Yes
Width
(mm)
22.5
Function star-delta
Yes
Function pulse shaping
Yes
Function flashing, starting with pause, fixed time
Yes
Function flashing, starting with pulse, fixed time
Yes
Clock function, starting with pause, variable
No
Clock function, starting with pulse, variable
No
With plug-in socket
Yes
Remote operation possible
No
Suitable as remote control
No
Pluggable on auxiliary contact block
No
Rated control supply voltage at AC 50 Hz
(V)
400 - 440
Rated control supply voltage at AC 60 Hz
(V)
400 - 440
Rated control supply voltage at DC
(V)
0 - 0
Voltage type for actuating
AC
Time range
(s)
0.05 - 360000
Number of outputs, undelayed, normally closed contact
0
Number of outputs, undelayed, normally open contact
0
Number of outputs, undelayed, change-over contact
0
Number of outputs, delayed, normally closed contact
0
Number of outputs, delayed, normally open contact
0
Number of outputs, delayed, change-over contact
2
Outputs, reversible delayed/undelayed
Yes
With semiconductor output
No
Height
(mm)
100
Depth
(mm)
90
Suitable for DIN rail (top hat rail) mounting
No
Suitable for front mounting
No
Stock and logistics
Height
0.126 m
Width
0.036 m
Depth
0.109 m
Packaging
item
Weight
0.174 kg
HS code
85364900
Country of Origin
DE
